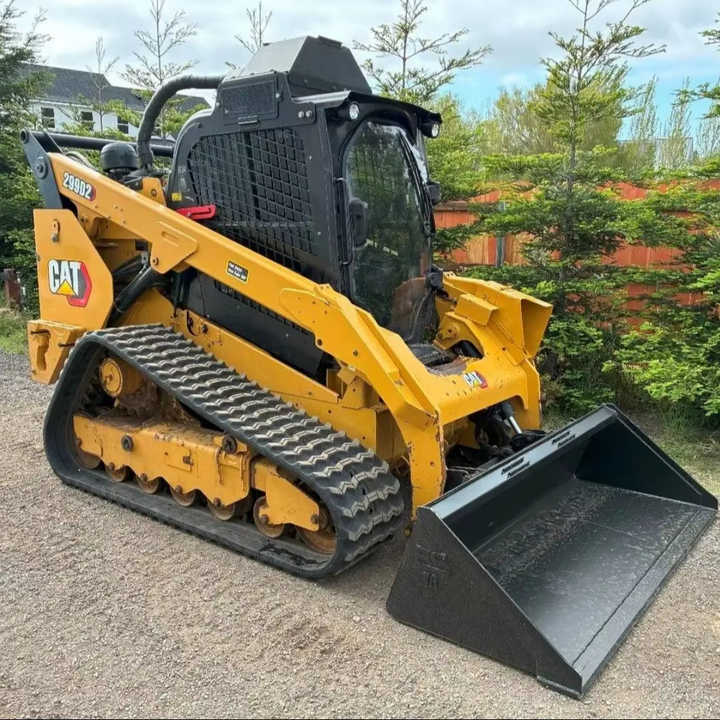

2018 for Caterpillar 299D2 XHP Mini Skid Steer Loader Used Wheel Loader 4 Ton Payload Capacity Bucket Backhoe Loader Attachments

Category Specification Model Year 2018 Model Number 299D2 XHP Engine CAT C3.8 DIT Turbocharged (Tier 4 Final / EU Stage IV) Net Power 106 HP (79 kW) Gross Power 110 HP (82 kW) Displacement 3.8 L (232 in³) Operating Weight 12,764 lb (5,789 kg) Rated Operating Capacity 4,340 lb (1,968 kg) Tipping Load 8,740 lb (3,965 kg) Hydraulic Flow – Standard 23 GPM (87 L/min) Hydraulic Flow – XHP (High) 40 GPM (151 L/min) @ 4,061 psi (28,000 kPa) Fuel Tank Capacity 31.7 gal (120 L) Hydraulic System Capacity 13.2 gal (50 L) Cooling System 3.7 gal (14 L) Travel Speed – Low 5.5 mph (8.9 km/h) Travel Speed – High 8.5 mph (13.7 km/h) Track Width 17.7 in (450 mm) Ground Pressure 4.7 psi (32.4 kPa) Lift Arm Type Vertical Lift Cab Features Enclosed cab, HVAC, joystick controls, optional advanced display Standard Bucket Width 80 in (2,032 mm) Bucket Capacity 0.58 – 0.62 yd³ (0.44 – 0.47 m³), general purpose Overall Length (with bucket) 153.4 in (3,897 mm) Length without Bucket 123.9 in (3,147 mm) Width (over tracks) 78 in (1,981 mm) Height to Top of Cab 83.1 in (2,111 mm) Maximum Lift Height 131.1 in (3,330 mm) Dump Angle at Max Height 51° Dump Reach at Max Height 32 in (813 mm) Turning Radius (rear) 70.9 in (1,801 mm) Ground Clearance 9.6 in (244 mm) Departure Angle 33°
