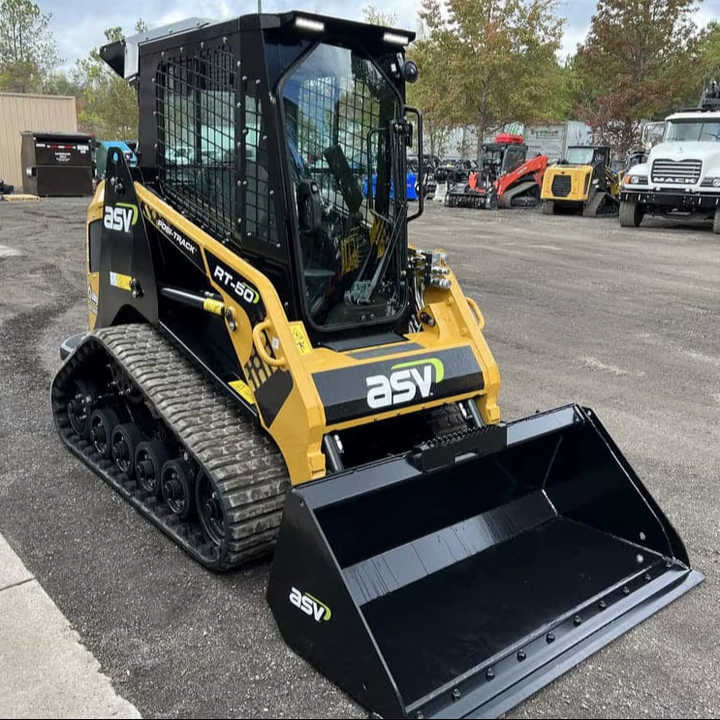

Category Specification General Loader Arms Radial Operating Weight 5,180 lbs (2,349 kg) Shipping Weight 4,597 lbs (2,085 kg) Rated Operating Capacity @35% 1,400 lbs (635 kg) Rated Operating Capacity @50% 2,000 lbs (907 kg) Tipping Load 4,000 lbs (1,814 kg) Ground Pressure 3.0 psi (20.7 kPa) Max Travel Speed 7.1 mph (11.4 km/h) Engine Engine Model Yanmar 3TN86CHT, 3-cylinder, turbocharged diesel Gross Power 53.8 hp (40.1 kW) Cooling System Engine-driven fan and coolant/antifreeze-filled radiator Intake Air Cleaner Dual stage Emission Standards EPA Tier 4 Final Hydraulics Auxiliary Flow 13.3 gpm (50.35 lpm) System Pressure 3,000 psi (20,684 kPa) Controls Variable flow via joystick rocker switch or continuous via console switch Couplers Push-to-connect quick couplers with pressure relief valve Undercarriage Track Width 15 in (381 mm) Track Length on Ground 57 in (1,448 mm) Ground Contact Area 1,713 in² (1.1 m²) Suspension Two independent torsion axles per undercarriage Roller Wheels 12 ultra-high molecular weight polyethylene and rubber wheels per track Dimensions Overall Length 126.4 in (3,211 mm) Width 58.5 in (1,486 mm) Height 80 in (2,032 mm) Ground Clearance 14.4 in (366 mm) Hinge Pin Height 109.6 in (2,784 mm) Electrical Voltage 12 V Battery 590 CCA Alternator 80 amp Outlets 1 x 12 V port inside operator station Service Capacities Fuel Tank 13 gal (49.2 L) Hydraulic Tank 3.5 gal (13.2 L) Engine Coolant 1.8 gal (6.8 L) Engine Oil 7.4 qts (7 L)
