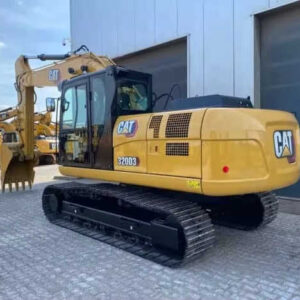

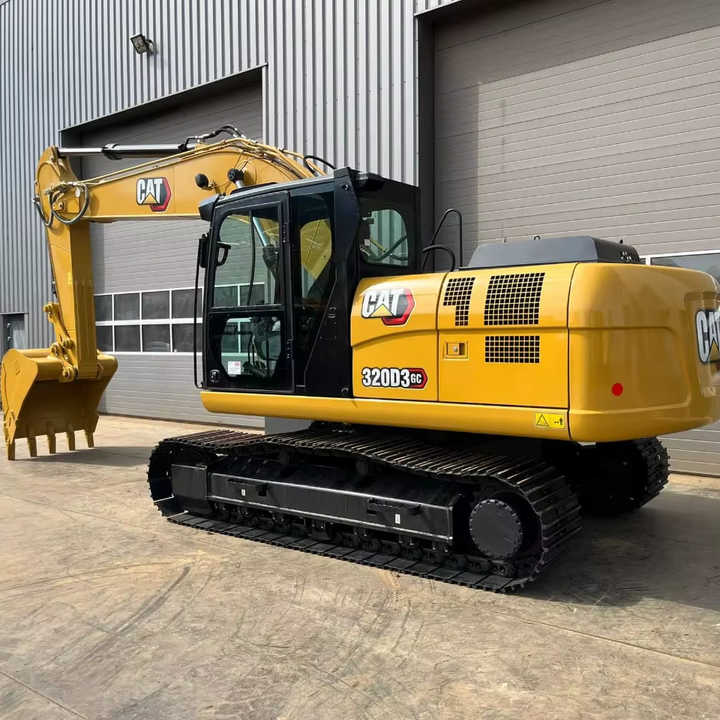

2024 Caterpillar 320D3 GC Excavator

Category Specification Engine Model ALUW06DTI Net Power (ISO 9249) 123 hp (92 kW) Engine Power (ISO 14396) 134 hp (100 kW) Bore x Stroke 104 mm x 113 mm Displacement 5.76 liters Emissions Non-certified emission engine Biodiesel Capability Up to B10 Hydraulic System Main System Max Flow 400 L/min (106 gal/min) Max Pressure (Equipment) 35,000 kPa (5,075 psi) Max Pressure (Travel) 35,000 kPa (5,075 psi) Max Pressure (Swing) 25,000 kPa (3,625 psi) Swing Mechanism Swing Speed 10 rpm Max Swing Torque 62 kN·m (45,581 ft·lbf) Operating Weight 19,800 kg (43,700 lb) Service Refill Capacities Fuel Tank 350 liters (92.5 gal) Cooling System 19 liters (5 gal) Engine Oil 18 liters (4.8 gal) Swing Drive (each) 6 liters (1.6 gal) Final Drive (each) 5 liters (1.3 gal) Hydraulic System (incl. tank) 230 liters (60.8 gal) Hydraulic Tank 115 liters (30.4 gal) Dimensions Boom HD Reach 5.7 m (18’8″) Stick Reach 2.25 m (7’5″) Bucket GD 1.0 m³ (1.31 yd³) Shipping Height (Top of Cab) 3,100 mm (10.4 ft) Handrail Height 2,915 mm (9.7 ft) Shipping Length 9,520 mm (31.3 ft) Tail Swing Radius 2,750 mm (9 ft) Counterweight Clearance 1,020 mm (3.4 ft) Ground Clearance 450 mm (1.6 ft) Track Length 4,080 mm (13.5 ft) Length to Center of Rollers 3,270 mm (10.9 ft) Track Gauge 2,200 mm (7.3 ft) Transport Width 2,800 mm (9.2 ft) Working Ranges & Forces Max Digging Depth 5,970 mm (19.7 ft) Max Reach at Ground Level 9,140 mm (30 ft) Max Cutting Height 9,110 mm (29.9 ft) Max Loading Height 6,250 mm (20.5 ft) Min Loading Height 2,920 mm (9.6 ft) Max Depth Cut for 2.44 m Level Bottom 5,640 mm (18.5 ft) Max Vertical Wall Digging Depth 5,350 mm (17.5 ft) Bucket Digging Force (ISO) 134 kN (30,120 lbf) Stick Digging Force (ISO) 112 kN (25,180 lbf) Performance Features Travel Speeds 3.8 km/h (1st gear), 5.6 km/h (2nd gear) Fuel Consumption As low as 11 liters/hour in earthmoving applications Cab Features Seat Fully adjustable mechanical suspension seat with console and armrest Air Conditioning Automatic air conditioner with pressurized function Additional Features Dual USB charging ports, washable floor mat, interior lighting, beverage holder Technology Telematics VisionLink® enabled for remote monitoring Optional Features Fuel flow meter for tracking fuel consumption
