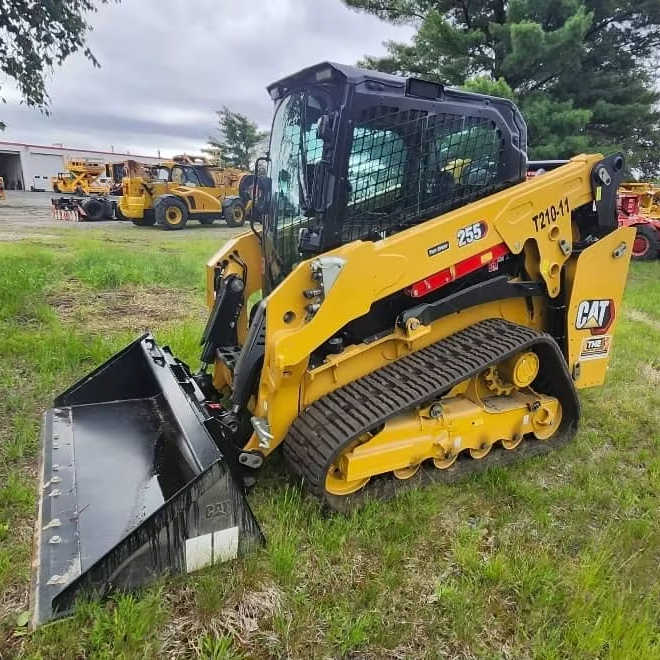

Category Specification Engine Engine Model Cat® C2.8T (turbo) Gross Power (SAE J1995) 74.3 hp (55.4 kW) Net Power (ISO 9249) 73 hp (54.4 kW) Net Power (SAE 1349) 73.5 hp (54.8 kW) Peak Torque (SAE J1995) 221 lb-ft (300 N·m) Displacement 171 in³ (2.8 L) Bore 4.3 in (110 mm) Stroke 3.5 in (90 mm) Hydraulic System Standard Flow 23 gal/min (86 L/min) @ 3,500 psi (24,130 kPa) High Flow 30 gal/min (113 L/min) @ 3,500 psi (24,130 kPa) High Flow XPS 30 gal/min (113 L/min) @ 4,061 psi (28,000 kPa) Hydraulic Power (Standard) 46.4 hp (34.6 kW) Hydraulic Power (High) 60.9 hp (45.4 kW) Hydraulic Power (XPS) 70.7 hp (52.7 kW) Operating Specs Operating Weight 9,578 lb (4,345 kg) Rated Operating Capacity 2,499 lb (1,133 kg) @ 35% tipping load Tipping Load 7,140 lb (3,238 kg) Breakout Force (Lift) 5,895 lb (2,674 kg) Breakout Force (Tilt) 6,746 lb (3,060 kg) Dimensions Vehicle Width 65.9 in (1,675 mm) with 320 mm tracks Vehicle Width 69.3 in (1,760 mm) with 400 mm tracks Length with Bucket 135 in (3,430 mm) Length without Bucket 110.2 in (2,800 mm) Height to Top of Cab 83.3 in (2,115 mm) Ground Clearance 8.3 in (212 mm) Bucket Pin Height (Max) 124 in (3,150 mm) Clearance at Max Dump 95.4 in (2,424 mm) Max Overall Height 155.2 in (3,941 mm) Turning Radius (Bucket) 82.9 in (2,105 mm) Performance Travel Speed (1-Speed) 5.7 mph (9.2 km/h) Travel Speed (2-Speed) 9.1 mph (14.7 km/h) Service Capacities Fuel Tank 25.1 gal (95 L) Hydraulic System 9.7 gal (36.8 L) Hydraulic Tank 6.9 gal (26 L) Engine Crankcase 2.2 gal (8.2 L) Cooling System 3 gal (11.5 L) Cab ROPS ISO 3471:2008 FOPS ISO 3449:2005 Level I
