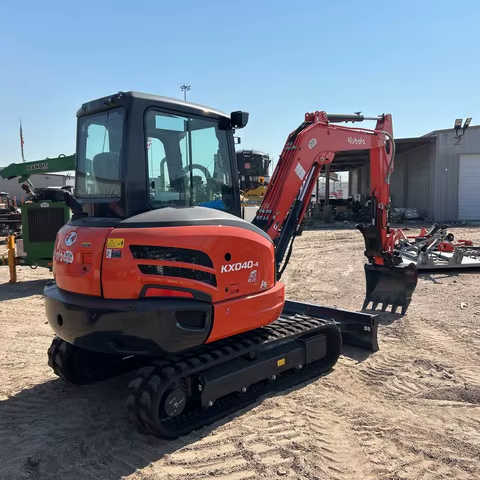

2024 Kubota KX040-4R3A Mini Excavator

Specification Value Engine Model Kubota D1803-CR-TE4 Engine Power (Net) 38.9 HP (29.1 kW) @ 2200 rpm Engine Power (Gross) 40.4 HP (30.2 kW) @ 2200 rpm Displacement 1826 cc (111.4 cu in) Max Digging Depth 3.42 m (11 ft 2.7 in) Max Digging Height 5.34 m (17 ft 6.6 in) Max Digging Radius 5.54 m (18 ft 2.1 in) Rated Travel Speed 2.9 km/h (Low) / 5.0 km/h (High) Bucket Capacity 0.14 m³ (approximate) Bucket Breakout Force 4325 kgf (9535 lbf) Arm Breakout Force 1865 kgf (4112 lbf) Operating Weight 4630 kg Overall Length 5.085 m (16 ft 8.2 in) Overall Width 1.7 m (5 ft 6.9 in) Overall Height 2.485 m (8 ft 1.8 in) Ground Clearance 330 mm (12.99 in) Fuel Tank Capacity 64 liters Hydraulic Oil Reservoir 42 liters Hydraulic System Capacity 74 liters Auxiliary Hydraulic Flow 65 l/min (AUX1), 37 l/min (AUX2) Pump Capacity 92.4 l/min Swing Speed 9.2 rpm Boom Swing Angle 70° (Left) / 55° (Right)
