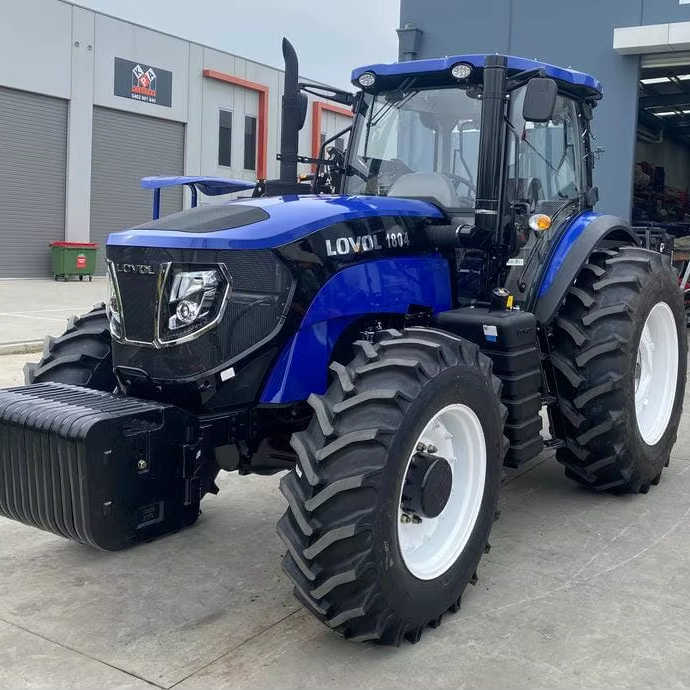

LOVOL M1804 TR, 180hp Cabin Tractor

Category Specification Engine Engine Model SDEC SC7H200.2G2 Type 6-cylinder, turbocharged diesel (mechanical pump, no ECU) Displacement 6.44 – 6.5 L Rated Power 132.4 kW / 180 HP Rated Speed 2200 rpm Max Torque ≥755 Nm Fuel Tank Capacity 350 L Transmission Type 16F + 16R synchronized with shuttle shift Clutch 14-inch dual-stage dry clutch (LUK brand) Differential Mechanical with rear diff lock Driveline & Axles Drive Type 4WD (Front Wheel Assist) Front Axle Carraro with planetary gearsets and floating hubs Rear Axle Heavy-duty with larger planetary gear sets Brakes Hydraulic wet disc Hydraulics & PTO Hydraulic Flow Rate 75–80 L/min (implement), 30 L/min (steering) Rear Remotes 4 pairs PTO Speeds 540 / 1000 rpm PTO Power 142 HP 3-Point Linkage Type Category III, hook-end with adjustable side links Lift Capacity 3500 kg @ 610 mm behind hitch point Dimensions & Weight Length × Width × Height 5300 × 2620–3400 × 3010–3150 mm (dual rear tires) Wheelbase 2727–2787 mm Ground Clearance 450–530 mm Turning Radius 5.3 ± 0.3 m Operating Weight 7950–8820 kg (depending on configuration) Tires Front 480/65R28 or 16.9-28 Rear 600/65R38 or 20.8-38 (dual rear wheels optional) Cabin & Controls Features A/C, heater, adjustable seat, roof-mounted controls, radio with USB charger Controls FEL joystick with 3rd function, floor-mounted 4WD & diff lock levers Front Loader (Optional) Type Euro mount, self-leveling with 4-in-1 bucket Safe Working Load 1000 kg Max Lift Capacity 1400 kg Additional Features Quick-release couplers, level rod indicator, parking stands, safety locks
