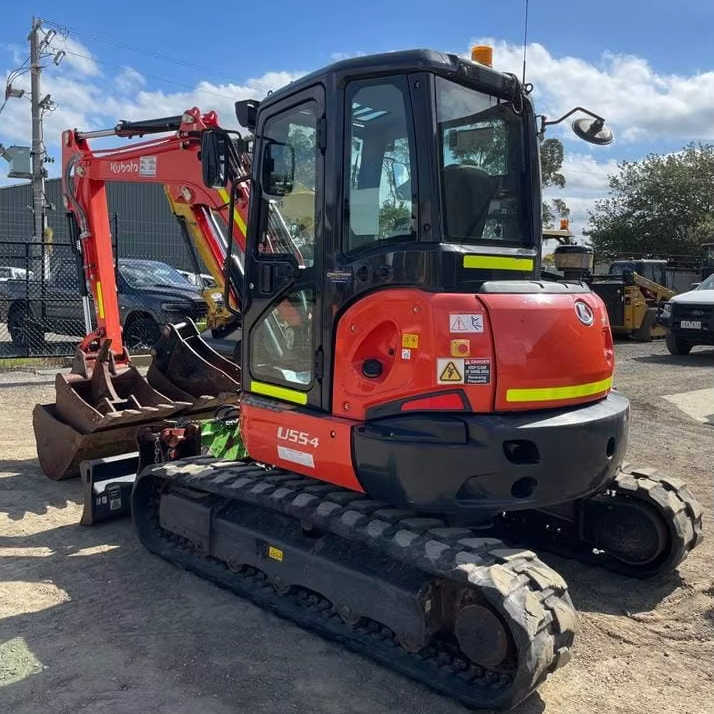

2021 KUBOTA U55-4 Crawler Excavator with Kyb Hydraulic Cylinder Core Components Including Engine Motor Pump Gear Bearing

Category Specification Engine Engine Model Kubota V2607-DI (Tier IV compliant) Net Power 45.4 HP (33.7 kW) Gross Power 47.6 HP (35.5 kW) Displacement 2,615 cc Rated Speed 2,200 rpm Hydraulics Pump Capacity 56.1 L/min × 2 (Variable) + 37.0 L/min × 1 (Gear) Auxiliary Flow (AUX1) 75 L/min Auxiliary Flow (AUX2) 37 L/min Max Breakout Force Bucket: 4,315 kgf; Arm: 2,770 kgf Drive System Max Traction Force 6,567 kgf Tumbler Distance 1,990 mm Crawler Length 2,500 mm Shoe Width 400 mm Ground Contact Pressure Canopy: 0.306 kgf/cm²; Cab: 0.311 kgf/cm² Swing System Swing Speed 9.3 rpm Boom Swing Angle Left: 70°; Right: 55° Travel Speeds Low / High 2.8 km/h / 4.9 km/h Dimensions Length 5,500 mm Width 1,960 mm Height 2,550 mm Ground Clearance 310 mm Operating Weight Canopy: 5,380 kg; Cab: 5,470 kg Blade Width 1,960 mm Height Standard: 410 mm; Angle Blade: 425 mm Max Lift Above Ground Standard: 440 mm; Angle Blade: 510 mm Max Drop Below Ground Standard: 405 mm; Angle Blade: 465 mm Blade Angle Angle Blade: 25° Fluid Capacities Fuel Tank 68 L Hydraulic Oil Reservoir 45 L Hydraulic System Total 79 L Engine Oil 9 L Working Range Max Digging Height 5,665 mm Max Dumping Height 4,005 mm Max Digging Depth 3,630 mm Max Vertical Dig Depth 2,830 mm Max Digging Radius 6,105 mm Min Turning Radius Without Swing: 2,460 mm; With Swing: 2,020 mm Tail Turning Radius 1,045 mm
