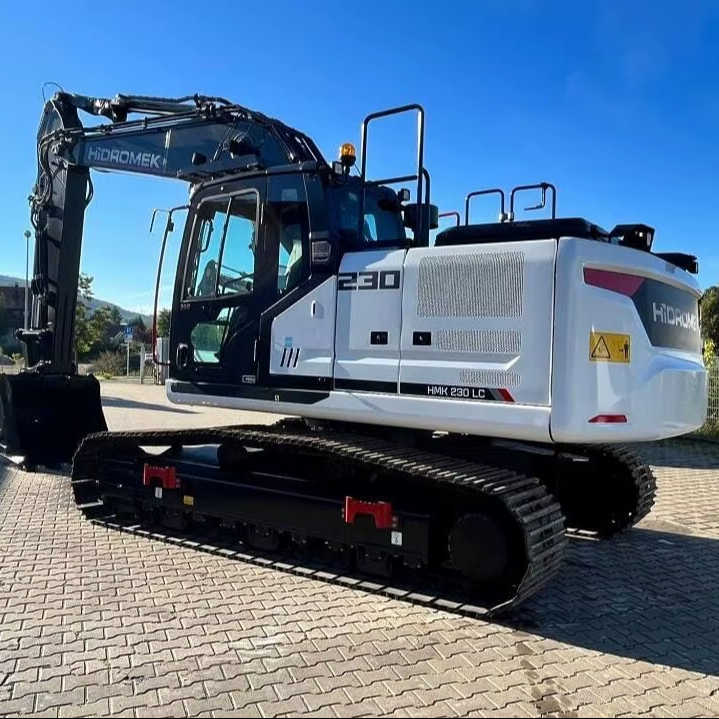

Hidromek HMK 230 LC-H4 Tracked Excavator with Isuzu Engine Eaton Hydraulic Cylinder Core Components Gear Pump Motor Gear Bearing

Category Specification Engine Manufacturer Isuzu Model 4HK1X Power Output 128 kW (172 HP) @ 2000 rpm Displacement 5.193 liters Torque 670 Nm @ 1600 rpm Emission Standard Euro V / Tier 4 Final Hydraulic System Main Pump Flow 2 × 233 L/min Pilot Pump Flow 20 L/min Operating Pressure 350 bar (standard), 370 bar (boost) Swing Pressure 306 bar Pilot Pressure 40 bar Performance Bucket Capacity 1.1 m³ (standard), up to 1.2 m³ (optional) Digging Depth 6.73 m Maximum Reach 9.81 m Dump Height 6.95 m Bucket Breakout Force 15,800 kgf Arm Tear-out Force 10,000 kgf Swing Speed 11.9 rpm Travel Speed 3.8 – 5.8 km/h Dimensions Operating Weight 23,650 kg Transport Length 9.74 m Transport Width 2.99 m Transport Height 3.01 – 3.33 m Undercarriage Length 4.46 m Track Width 600 mm Boom Length 5.7 m (monobloc) or 5.6 m (variable) Arm Length 2.4 m or 2.92 m Cabin & Features Air Conditioning Yes Heated Air Suspension Seat Yes Quick Coupler (Hydraulic & Mechanical) Yes Overload Alert System Yes Diesel Particulate Filter (DPF) Yes Material Handling Ready Yes Additional Hydraulics For hammer, shear, rotator, and clamshell attachments
