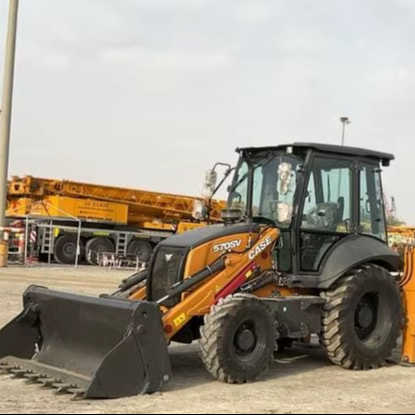

2024 Case 570SV 4×4 Backhoe Loader

Category Specification Engine Engine Model FPT S8000 (8045.45.748) Power 72 kW (97 hp) @ 2200 rpm Max Torque 420 Nm @ 1300 rpm Displacement 3.9 L Emission Level Tier 3 Cylinders 4 Bore/Stroke 104 mm x 115 mm Transmission Type Powershuttle, 4-speed manual Max Travel Speed 39.2 km/h Hydraulics System Type Double gearing Pump Flow 145 L/min @ 2000 rpm Max Pressure 210 bar Dimensions & Weight Operating Weight 8,290 kg Length (Transport) 5,990 mm Width (Transport) 2,277 mm Height (Transport) 2,830 mm Overall Height 3,800 mm Wheelbase 2,175 mm Backhoe Performance Max Digging Depth 5.892 m Max Reach at Ground 7.024 m Max Working Height 6.405 m Bucket Swing Angle 204° Loader Performance Max Dumping Height 2.745 m Discharge Height 3.580 m Discharge Angle 45° Load Capacity at Ground 5,425 kg Load Capacity at Max Height 3,425 kg Capacities Fuel Tank 129 L Hydraulic Oil 107 L Engine Oil 8.6 L Transmission Oil 20 L Front Axle Oil 8.9 L Rear Axle Oil 17.1 L Coolant 20 L Cabin & Features ROPS/FOPS Certified Yes Air Conditioning Optional Seat Adjustable with suspension Controls Ergonomic joystick Visibility 360-degree Tires Front Tires 12.5-18 Rear Tires 16.9-28
