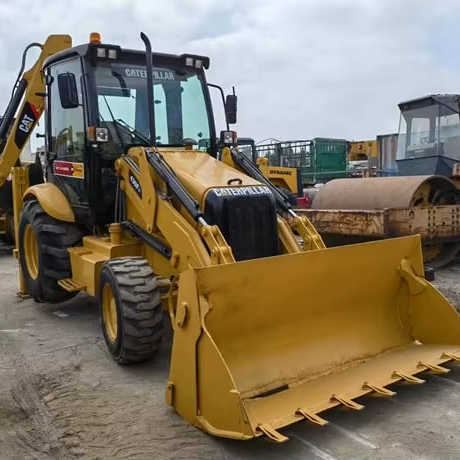

2024 CATERPILLAR 430F Loader Backhoes

Category Specification Engine Engine Model Cat C3.6 Net Power (SAE J1349) 107 hp (80 kW) Emissions Compliance U.S. EPA Tier 4 Final / EU Stage V Operating Weight Minimum Operating Weight 16,590 lb (7,525 kg) Maximum Operating Weight 24,251 lb (11,000 kg) Backhoe Performance Max Dig Depth (Standard) 15.1 ft (4,612 mm) Max Dig Depth (E-Stick) 19.5 ft (5,950 mm) Bucket Dig Force 16,156 lb (7,328 kg) Stick Dig Force 10,067 lb (4,566 kg) Loader Performance Lift Capacity at Full Height 7,230 lb (3,280 kg) Bucket Breakout Force 11,484 lb (5,209 kg) Bucket Capacity (GP) 1.31 yd³ (1.01 m³) Hydraulic System Pump Type Variable-flow, axial piston System Pressure 3,626 psi (25,000 kPa) Pump Capacity @ 2,200 rpm 49.4 gal/min (187 L/min) Transmission Type Power Shift (Standard); AutoShift with Lock-Up Torque Converter (Optional) Max Forward Speed 26 mph (41 km/h) Max Reverse Speed 17 mph (27 km/h) Steering & Axles Steering Type Hydrostatic, front-wheel steering Turning Radius (Outside Front Wheels) 26.92 ft (8.205 m) Axle Oscillation 11° Service Refill Capacities Fuel Tank 42.3 gal (160 L) Engine Oil (with filter) 2.4 gal (9 L) Hydraulic System 25.1 gal (95 L) Hydraulic Tank 11.1 gal (42 L) Cooling System (with A/C) 4.8 gal (18 L) DEF Tank 5 gal (19 L)
