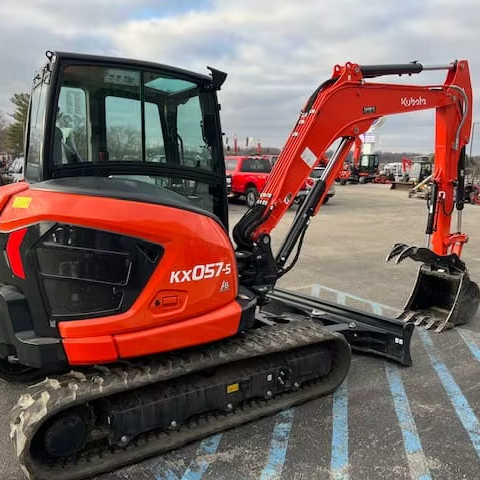

2024 Kubota KX057-5R3A excavator

Category Specification Engine Model Kubota V2607-CR-E5 Gross Horsepower 47.6 HP (35.5 kW) @ 2200 RPM Net Horsepower 46.4 HP (34.6 kW) @ 2200 RPM Displacement 159.6 cu. in. (2615 cc) Emissions Tier 4 Final Hydraulics Pump Capacity 14.8 GPM (56.1 LPM) Variable × 2 / 9.8 GPM (37.0 LPM) Gear × 1 Auxiliary Hydraulics Flow AUX1: 19.8 GPM (75 LPM) / AUX2: 9.8 GPM (37 LPM) Operating Pressure Boom/Arm/Bucket: 3,553 psi (24.5 MPa); Auxiliary: 3,046 psi (21 MPa) Performance Bucket Breakout Force 10,172 lbs (4,614 kgf) Arm Breakout Force 5,463 lbs (2,478 kgf) Max Traction Force (Low) 14,480 lbs (6,567 kgf) Travel Speed (Low/High) 1.8 mph (2.8 km/h) / 3.1 mph (4.9 km/h) Swing Speed 9.2 RPM Boom Swing Angle Left: 70° / Right: 55° Dimensions Overall Length 18 ft 1 in (5,520 mm) Overall Height 8 ft 4 in (2,550 mm) Overall Width 6 ft 5 in (1,960 mm) Ground Clearance 12.2 in (310 mm) Crawler Length 8 ft 2 in (2,500 mm) Tumbler Distance 6 ft 6 in (1,990 mm) Track Gauge 4 ft 8 in (1,420 mm) Operating Range Max Digging Depth 12 ft 9 in (3,875 mm) Max Vertical Digging Depth 5 ft 4 in (1,630 mm) Max Digging Height 19 ft 0 in (5,785 mm) Max Dumping Height 13 ft 8 in (4,155 mm) Max Digging Radius 20 ft 7 in (6,260 mm) Min Turning Radius (w/o swing) 7 ft 11 in (2,410 mm) Min Tail Turning Radius 4 ft 2 in (1,270 mm) Blade Width 6 ft 5.2 in (1,960 mm) Height 16.1 in (410 mm) Max Lift Above Ground 17.3 in (440 mm) Max Drop Below Ground 15.9 in (405 mm) Angle Blade Swing Left/Right: 25° Capacities Hydraulic Reservoir/System 11.1 gal (41.9 L) / 20.3 gal (77.0 L) Fuel Tank 19.3 gal (73.0 L) Operating Weight Rubber Canopy/Cab 12,346 lbs (5,600 kg) / 12,577 lbs (5,705 kg) Steel Canopy/Cab 13,106 lbs (5,945 kg) / 13,338 lbs (6,050 kg) Features Cab Enclosed with Heat and A/C Display 7.1″ LCD Color Display Controls Hydraulic Pilot Controls Additional Equipment Hydraulic Thumb, Quick Coupler, 24″ and 36″ Trenching Buckets Travel System Two-Speed with Rubber Tracks Safety ROPS/FOPS Certified Cab
