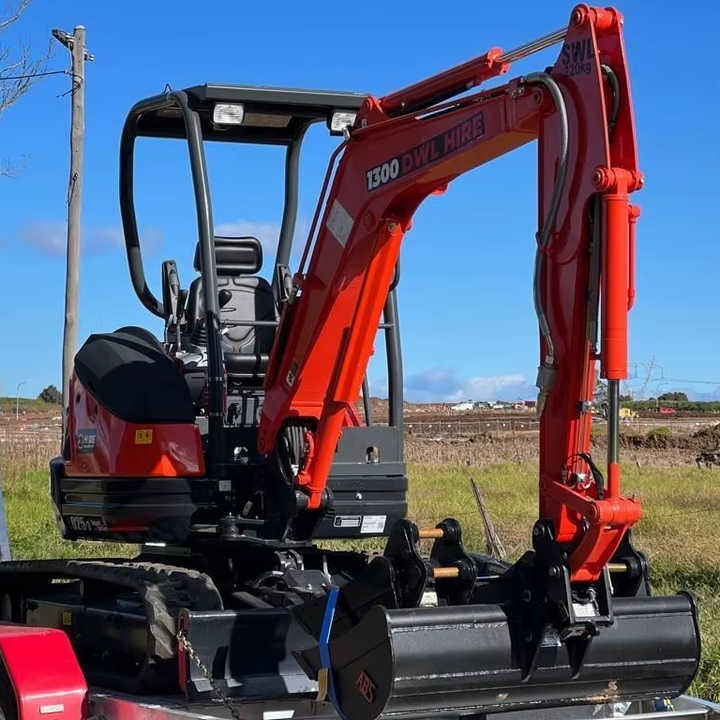

KUBOTA U25 – 3 Mini Excavator

Specification Value Model Kubota U25-3 Machine Weight (Operating) 2,690 kg (5,930 lbs) Engine Model Kubota D1105-E4-BH-1 Engine Power (Gross) 20.9 hp (15.6 kW) @ 2,300 rpm Displacement 1,123 cc (68.5 cu in) Fuel Tank Capacity 28 liters (7.4 gal) Max Digging Depth 2.82 m (9 ft 3 in) Max Dumping Height 3.02 m (9 ft 11 in) Max Reach at Ground Level 4.78 m (15 ft 8 in) Boom Swing Angle (L/R) 70° / 50° Tail Swing Zero-tail swing Travel Speed (Low/High) 2.5 / 4.5 km/h (1.6 / 2.8 mph) Ground Clearance 290 mm (11.4 in) Hydraulic Pump Flow 61.6 L/min (16.3 gpm) Bucket Breakout Force 2,200 kgf (4,850 lbf) Arm Breakout Force 1,350 kgf (2,976 lbf) Overall Length 4.31 m (14 ft 2 in) Overall Height 2.42 m (7 ft 11 in) Overall Width 1.5 m (4 ft 11 in)
