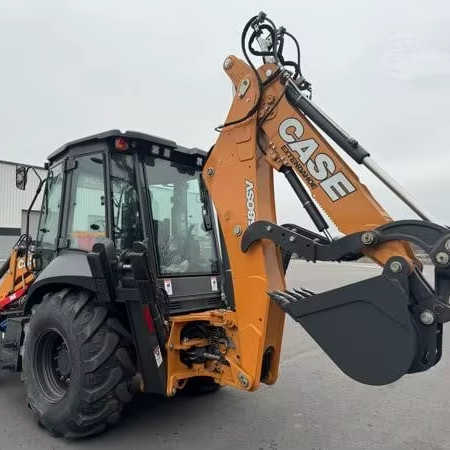

2025 CASE 580SV Mini Wheel Loader Backhoes 6-9 Ton Rated Load for Home Use & Mini Dumper

Category Specification Engine Engine Make & Model FPT F5C – F5MGL413B Emission Level Stage V Displacement 3.6 L Rated Power 72 kW (97 hp) @ 2200 rpm Max Net Power 84 kW (112 hp) @ 2000 rpm Max Torque 453 Nm @ 1400 rpm Transmission Type Powershuttle / Powershift Forward Speeds 6 – 10 – 21 – 40 km/h Reverse Speeds 7 – 12 – 26 – 47 km/h Axles Front Axle 4WD Heavy Duty, ±11° Oscillation Rear Axle Carraro 28.44FR with Differential Lock Brakes Service Brakes Hydraulic Foot Operated, 2 Discs per Side Parking Brake Mechanically Actuated Hydraulics System Type Load Sensing Closed Center with Twin Gear Pump / Variable Volume Pump Flow Rate 156 l/min (up to 165 l/min) Pressure 205 bar Loader Performance Bucket Capacity 1.0 m³ Bucket Width 2.25 m Tear-Out Force 40.62 kN Dump Reach at Full Height (Straight Arm) 815 mm (Standard Bucket), 785 mm (4-in-1 Bucket) Dump Reach at Full Height (Tool Carrier Arm) 844 mm (Standard Bucket), 825 mm (4-in-1 Bucket) Backhoe Performance Dig Depth 4.37 m (Standard), up to 5.62 m with Extendahoe® Max Reach (Horizontal) 5.23 m Tear-Out Force (Backhoe) 53.26 kN Bucket Capacity (Backhoe) 0.3 m³ Dimensions & Weight Operating Weight 8.66 t Transport Length 5.79 m Transport Width 2.43 m Transport Height 3.49 m Capacities Fuel Tank 131 L Hydraulic Oil 142 L DEF Tank 13.2 L Engine Oil 8 L Transmission Oil 20.8 L Rear Axle Oil 21.2 L Coolant 24 L Electrical System Voltage 12 V Battery Single 95 Ah 900 A or Double 60 Ah, 600 A (each) Alternator 120 A Cab Features Certification ROPS / FOPS Air Conditioning Optional Storage Compartments 45 L (including 2 lockable, cooling box) Noise Level (Internal) 74 dB(A) Noise Level (External) 101 dB(A)
