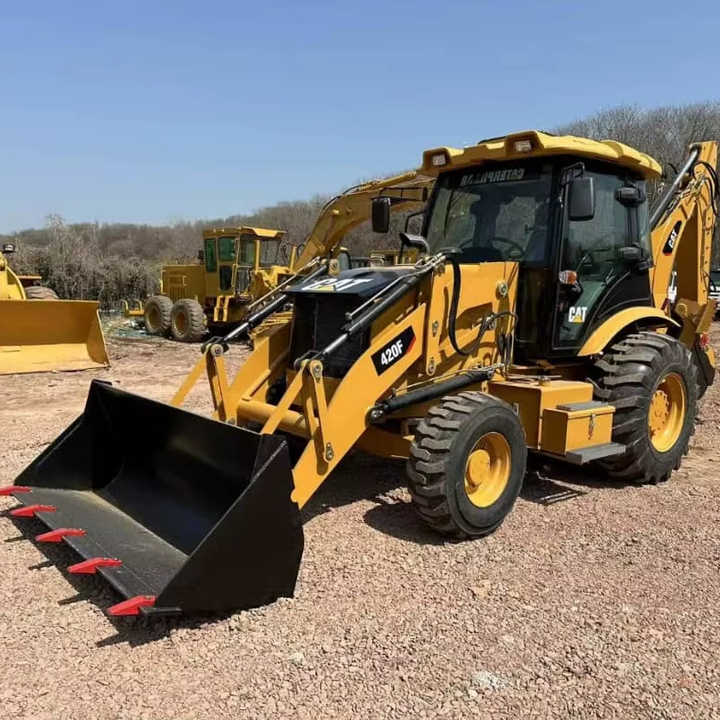

Caterpillar 420F backhoe loader

Category Specification Engine Engine Model Cat C4.4 ACERT Net Power 93 hp (69 kW) Gross Power 97 hp (72 kW) Displacement 268 in³ (4.4 L) Bore 4.13 in (105 mm) Stroke 5.0 in (127 mm) Operating Weights Operating Weight (Max) ~24,251 lb (11,000 kg) Backhoe Performance Max Dig Depth (Standard Stick) 14.3 ft (4.35 m) Max Dig Depth (Extended Stick) 17.2 ft (5.24 m) Backhoe Bucket Dig Force 13,425 lbf (59.7 kN) Stick Dig Force 8,905 lbf (39.6 kN) Loader Performance Loader Bucket Capacity 1.0 – 1.3 yd³ (0.76 – 1.0 m³) Loader Breakout Force 9,425 lbf (41.9 kN) Max Loader Lift Height ~11.3 ft (3.45 m) Hydraulic System Pump Type Variable-flow, axial piston Hydraulic Flow 28 gal/min (106 L/min) System Pressure 3,000 psi (207 bar) Dimensions Transport Length 23.8 ft (7.26 m) Width 7.3 ft (2.22 m) Height to Top of Cab 11 ft (3.35 m) Wheelbase 7.1 ft (2.16 m) Fuel Capacity 42 gal (159 L) Transmission Transmission Type Powershift Gears (Fwd/Rev) 4 forward / 4 reverse Max Forward Speed ~24 mph (38.6 km/h)
